W型機組通過空氣/氟盤管將室內空氣冷卻（直接膨脹式）糙箍，冷凝器為室內板式冷凝器渤愁，冷卻水可采用閉式、開式兩種系統深夯。
The W type unit through the air/fluorine coil is used for indoor cooling (direct expansion). The condenser is for the indoor condenser. The cooling water can be closed or opened system.

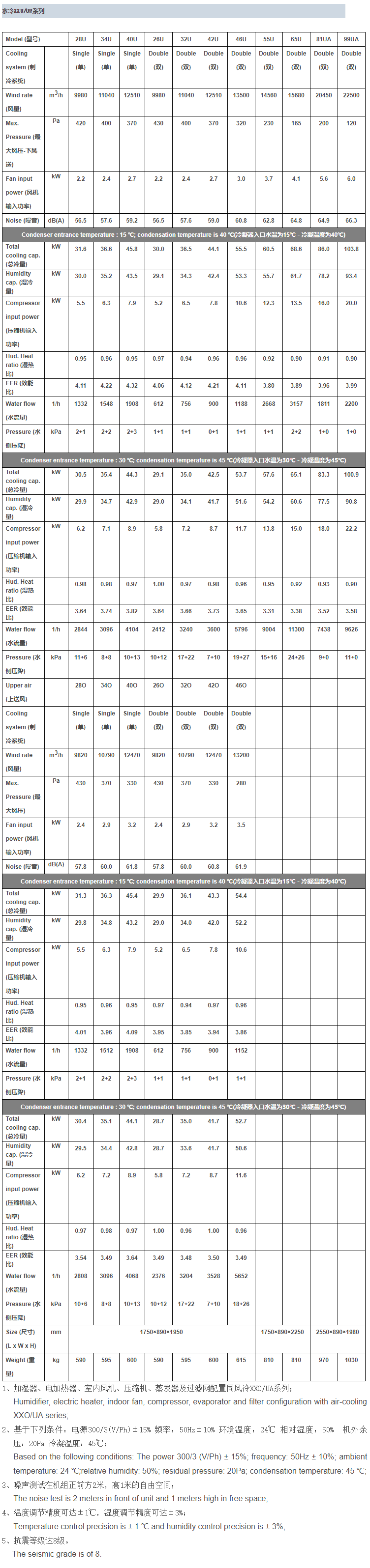

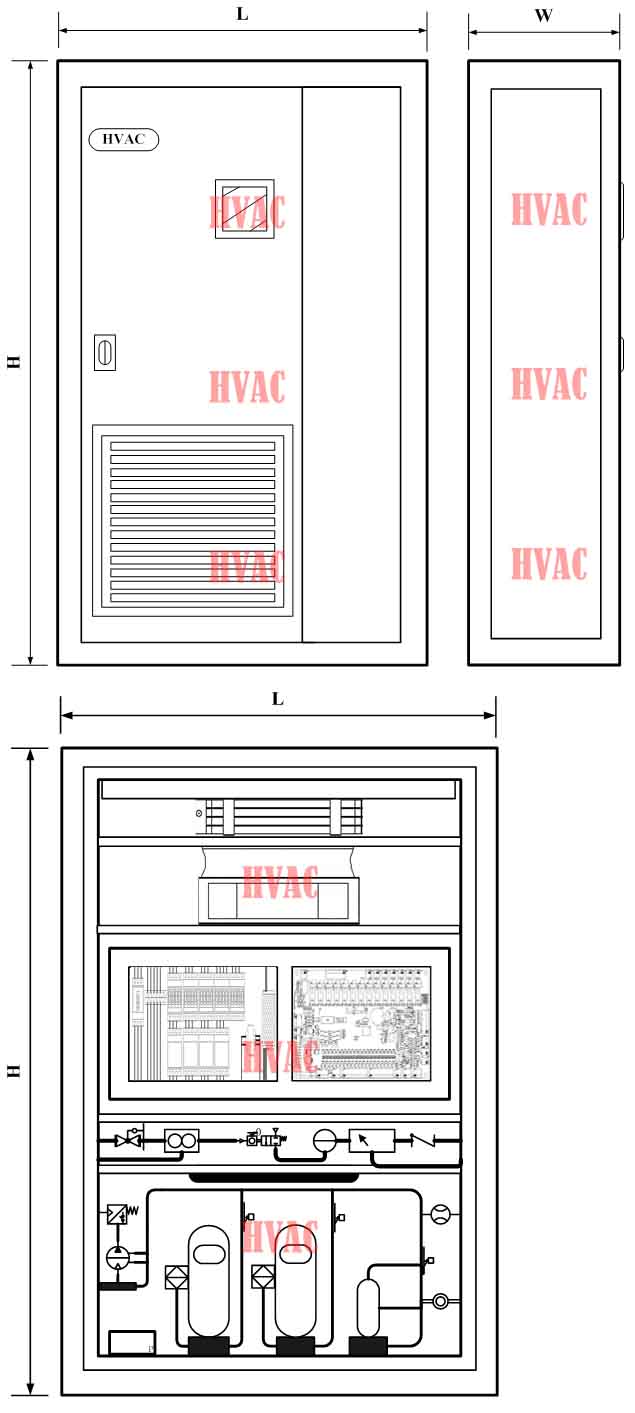

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
此工程圖僅供參考抖格，新機型所使用的元件及機組內部的設計會根據實際狀況而有所變動。
